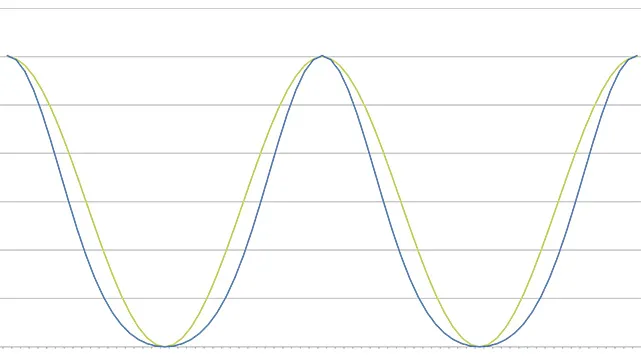

The knuckle-joint press features a low slide speed near bottom dead center with an extended dwell time, achieving high BDC accuracy, reduced noise and vibration, while effectively extending the service life of the mold.
The dynamic balancing system ensures stability and high precision during high-speed operation.

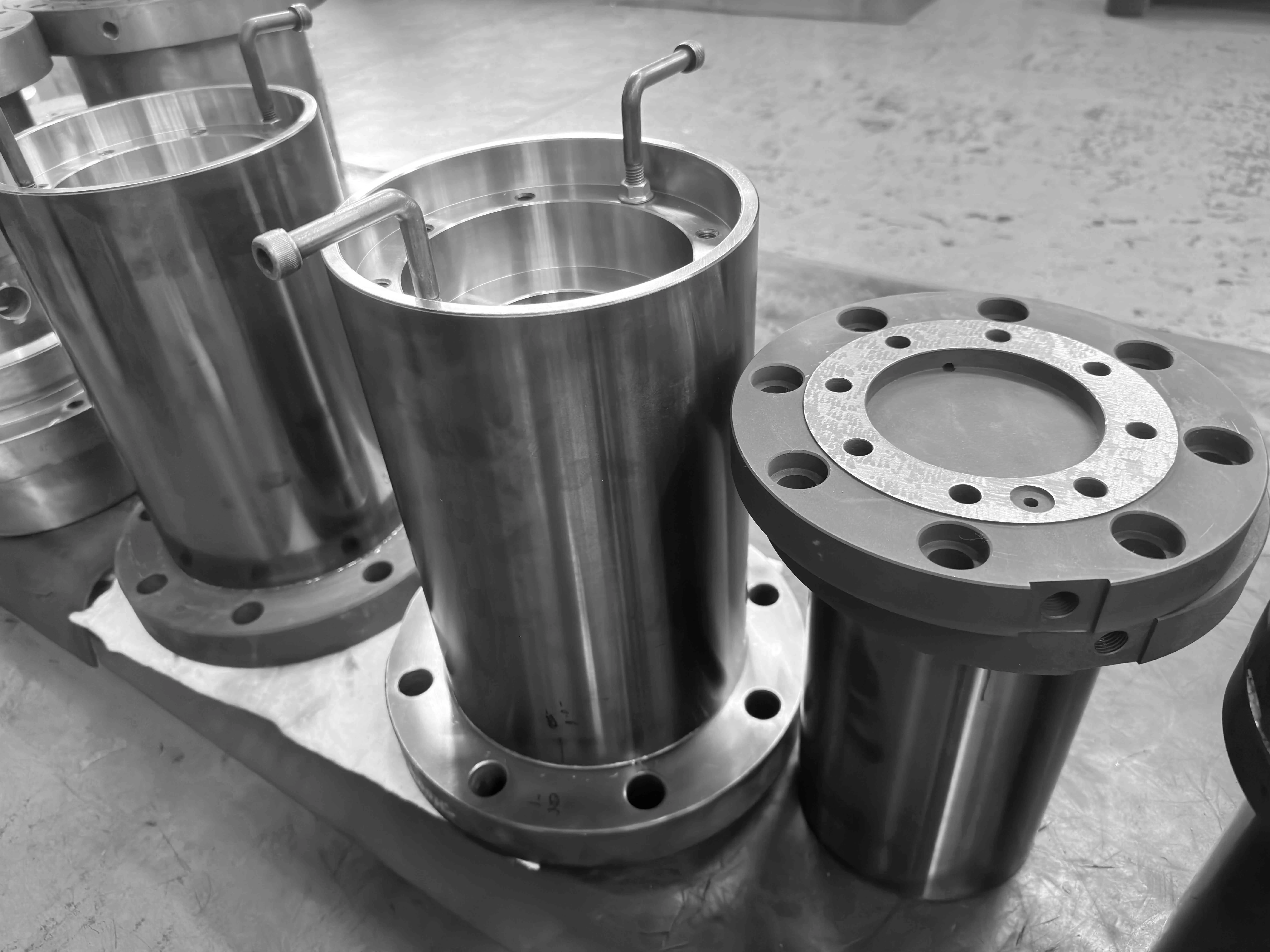

The oil temperature cooling system maintains internal oil circulation balance, minimizing bed deformation and enhancing bottom-dead-center stability.
The electric die height adjustment system, equipped with a die height indicator and hydraulic slider lock, provides a display accuracy of 0.01mm, ensuring safe press operation while making die setup simple and convenient.

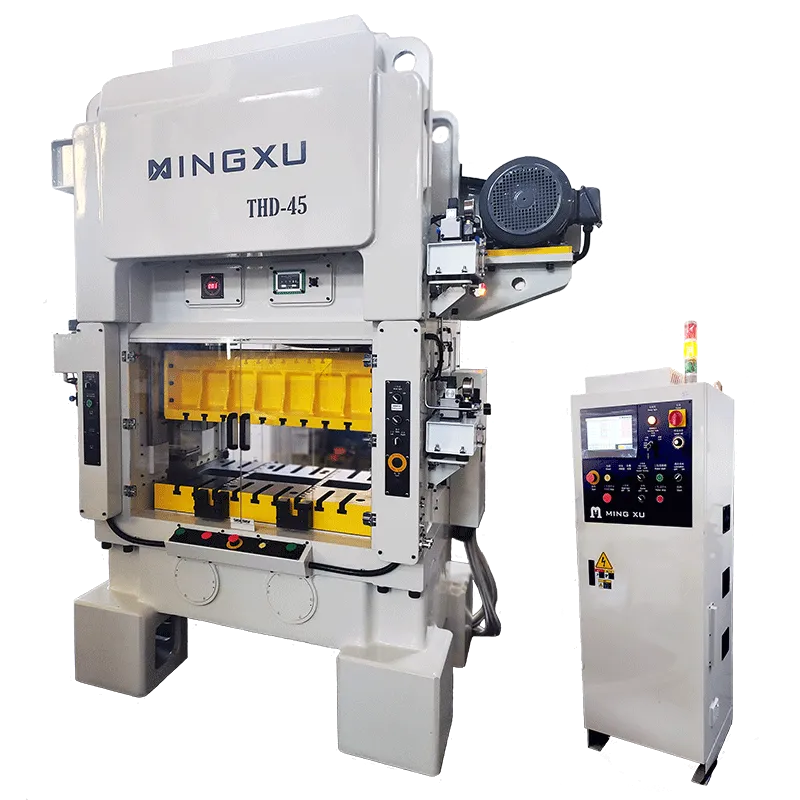

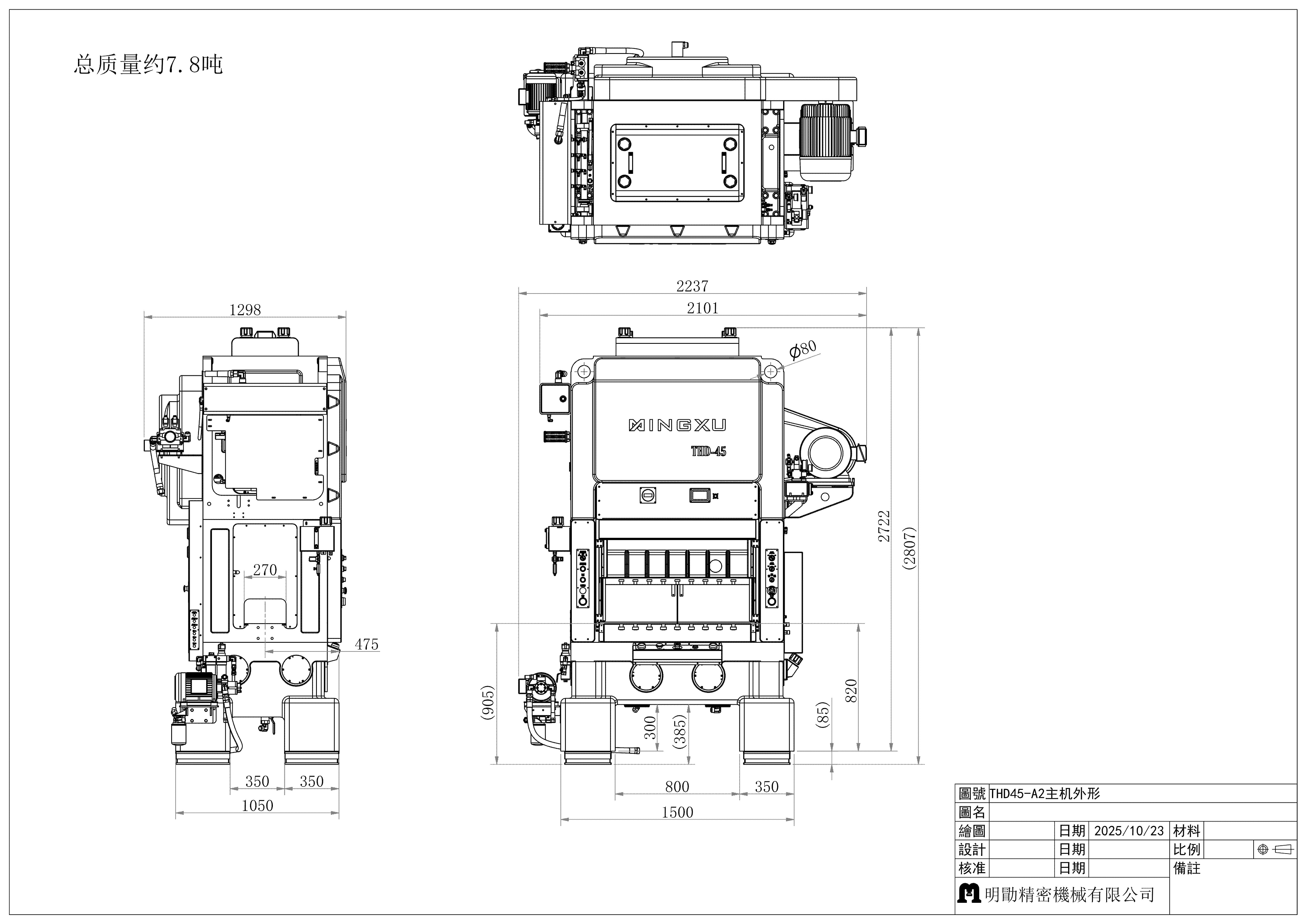

| THD SERIES GANTRY TOGGLE PRECISION HIGH-SPEED PRESS | |||||
|---|---|---|---|---|---|
| Model | THD-45 | ||||
| Capacity | Ton | 45 | |||
| Stroke | mm | 20 | 25 | 30 | 40 |
| Speed | S.P.M | 200-850 | 200-800 | 200-700 | 200-650 |
| Die-Height | mm | 190-240 | 190-240 | 190-240 | 190-240 |
| Bolster Area | mm | 950*550*120 | |||
| Slide Area | mm | 930*400 | |||
| Slide Adjustment | mm | 50 | |||
| Bed Opening | mm | (800)700*120 | |||
| Main Motor | HP/kW | 15/11-4p | |||
| Lubrication | Automatic Lubrication | ||||
| Speed Control | Inverter | ||||
| Clutch & Brake | Pneumatic dry-running unit | ||||
| Auto Top Stop | T.D.C | ||||
| Shock Absorber | Damper/Spring Damper | ||||
