The dynamic balancing system ensures stability and high precision during high-speed operation.
The triple large guide post design enhances machine accuracy and stability under off-center mold loading.
The patented thermal balance technology, combined with additional cooling fans, ensures excellent precision during prolonged use and seamless switching between high and low speeds.
The triple large guide post design enhances machine accuracy and stability when molds are under off-center loading.
The addition of an upper guide post, building on the triple large guide post foundation, optimizes C-type press performance and addresses deformation issues of cast iron components.

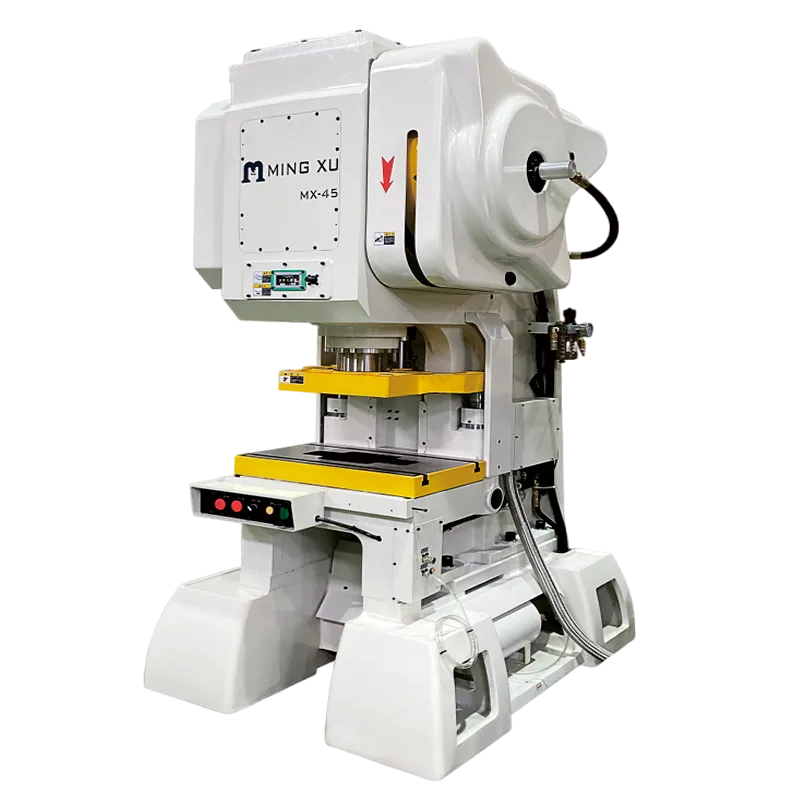

| MX SERIES -C FRAME PRECISION HIGH-SPEED PRESS | |||||
|---|---|---|---|---|---|
| Model | MX-45 | ||||
| Capacity | Ton | 45 | |||
| Stroke | mm | 20 | 25 | 40 | 50 |
| Speed | S.P.M | 200-800 | 200-700 | 200-600 | 200-500 |
| Die-Height | mm | 215-245 | 210-240 | 205-235 | 200-230 |
| Bolster Area | mm | 680*420*90 | |||
| Slide Area | mm | 420*320 | |||
| Slide Adjustment | mm | 30 | |||
| Bed Opening | mm | (500)400*100 | |||
| Main Motor | HP/kW | 10/7.5 | |||
| Lubrication | Automatic Lubrication | ||||
| Speed Control | Inverter | ||||
| Clutch & Brake | Pneumatic dry-running unit | ||||
| Auto Top Stop | T.D.C | ||||
| Shock Absorber | Damper | ||||
